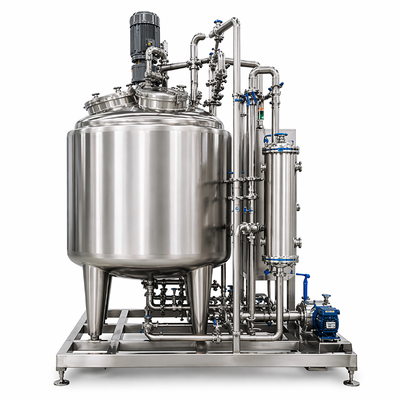

Mixing Solution Preparation System 800L with SS316L Tank (Variable Speed Agitator, Sanitary Design)
Thông tin chi tiết sản phẩm:
| Nguồn gốc: | Trung Quốc |
| Hàng hiệu: | CHONGYANG |
| Chứng nhận: | ISO,CE |
| Số mô hình: | CY-SPS-500L |
Thanh toán:
| Số lượng đặt hàng tối thiểu: | 1 |
|---|---|
| Giá bán: | negotiable |
| chi tiết đóng gói: | xuất khẩu hộp gỗ tiêu chuẩn |
| Thời gian giao hàng: | 15 ngày |
| Điều khoản thanh toán: | T/T, L/C |
| Khả năng cung cấp: | 100 bộ/tháng |
|
Thông tin chi tiết |
|||
| Dung tích: | 300L / 500L / 1000L / 2000L / 3000L / Tùy chỉnh | Vật liệu: | SS316L (Bộ phận tiếp xúc sản phẩm), SS304 (Khung) |
|---|---|---|---|
| Hoàn thiện bề mặt: | Ra bên trong 0,4μm, Mờ bên ngoài / Đánh bóng | Hệ thống điều khiển: | Điều khiển tự động PLC với màn hình cảm ứng (Tùy chọn Siemens/Schneider) |
| Chức năng: | Áo trộn, sưởi ấm & làm mát, hệ thống làm sạch CIP/SIP | Ứng dụng: | Dược phẩm / Biopharma / Mỹ phẩm / Công nghiệp thực phẩm |
Mô tả sản phẩm
Mixing Solution Preparation System 800L with SS316L Tank (Variable Speed Agitator, Sanitary Design)
1. Product Name
Mixing Solution Preparation System 800L with SS316L Tank (Variable Speed Agitator, Sanitary Design)
2. Product Overview
The 800L Mixing Solution Preparation System is engineered for hygienic liquid blending and preparation in controlled production environments. With SS316L contact surfaces and a sanitary design, it provides excellent corrosion resistance, easy cleaning, and stable product quality.
Equipped with a variable speed agitator, the system allows precise adjustment of mixing intensity to suit different process requirements. Its compact skid-mounted structure ensures easy installation and integration into existing lines.
3. Applications
- Biotech liquid preparation
- Cosmetic liquid mixing
- Food & beverage blending
- Chemical liquid processing
- Laboratory and pilot-scale production

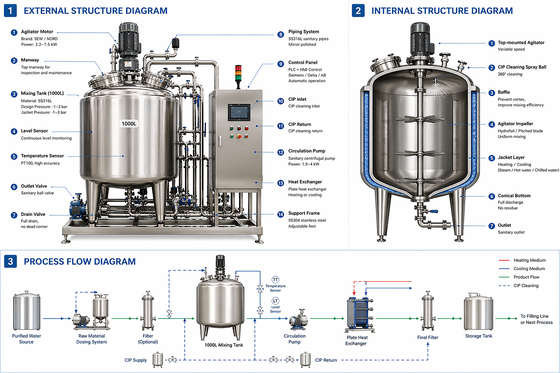

4. Process Flow Diagram
→ Heating/Cooling Jacket → Circulation Loop → Filtration Unit → Storage / Transfer
Process Description:
Water and raw materials are fed into the mixing tank through a controlled dosing system. The variable speed agitator ensures uniform mixing. Temperature is maintained via an optional jacket system. The solution is circulated, filtered, and transferred to storage or downstream processes.
5. Key Features
- SS316L contact parts with sanitary design
- Variable speed agitator for flexible operation
- Smooth internal surface (Ra ≤ 0.4 μm optional)
- Optional heating and cooling jacket
- Stable and uniform mixing performance
- CIP-ready for efficient cleaning
- Skid-mounted compact structure
6. Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 800 L |
| Contact Material | SS316L |
| External Material | SS304 |
| Surface Finish | ≤0.8 μm (≤0.6 / ≤0.4 μm optional) |
| Mixing Type | Top-mounted agitator |
| Mixing Speed | 0–60 rpm (variable) |
| Heating/Cooling | Jacket (optional) |
| Control System | Manual / PLC optional |
| Cleaning System | CIP ready |
| Working Pressure | 0–0.3 MPa |
| Design Temperature | -10°C to 120°C |
| Power Supply | 220V / 380V, 50/60 Hz |
| Installation | Skid-mounted |
| Design Standard | GMP-oriented, ISO |
7. Configuration List
| Component | Description |
|---|---|
| Mixing Tank | 800L SS316L vessel with manway |
| Agitator | Variable speed top-mounted mixer |
| Jacket System | Heating/cooling jacket (optional) |
| Control Panel | Manual or PLC control |
| Valves | Sanitary diaphragm valves |
| Piping | SS316L hygienic piping |
| Pump | Circulation/transfer pump |
| Filter Unit | Optional filtration system |
| Sensors | Temperature, pressure, level |
| CIP Interface | Cleaning ports |
| Frame | Stainless steel skid base |
8. Project Cases
Case 1 – Southeast Asia Cosmetic Facility
An 800L system improved mixing consistency and reduced batch variation through adjustable speed control.
Case 2 – Middle East Food Processing Line
System ensured stable blending of liquid ingredients, improving overall production efficiency.
9. Certifications & Standards
- GMP-oriented design principles
- ISO 9001 Quality Management
- Hygienic piping and sanitary fittings
- Optional compliance with FDA / WHO guidelines
10. FAQ
Q1: Can the mixing speed be adjusted?
Yes, the system features a variable speed agitator for flexible operation.
Q2: Is the system customizable?
Yes, capacity, configuration, and control options can be tailored.
Q3: Does it support temperature control?
Yes, optional heating and cooling jacket is available.
Q4: Is automatic control available?
Yes, PLC control with touch screen can be integrated.
Q5: Does the system support cleaning?
Yes, it is designed with CIP-ready connections.
11. CTA (Call To Action)
Looking for a reliable 800L mixing solution preparation system?
Contact us for a customized design and quotation.
